Features |
1) Ultra-thin aluminum front frame with fine sandblasted and anodized surface, zinc alloy plated corner brackets, sheet metal rear cover, providing a strong metallic feel and active heat dissipation for the whole device;
2) Optional anti-glare tempered glass to protect the LCD and enhance visual effects, protecting eyesight and improving the touch experience;
3) Standard high-precision infrared touch bar: 1- touch accuracy <1mm; 2- supports simultaneous writing with 2 pens with 2mm tips; 3- supports simultaneous writing with 5 pens with 3mm tips;
4) Supports multiple users writing small characters up to 1cm high; 5- dual-color pen recognition accuracy 100%; (requires support from Android whiteboard software) 6- lift height <1mm, writing foreign text without connecting strokes (meets the standards of UNESCO supplier Promethean);
5) Structure designed for low-touch zero-gap, providing an excellent touch writing experience;
6) Operating system: Android or Windows optional;
7) Front-facing speakers to prevent sound distortion from embedded environments;
8) Uses internationally standard OPS slot, integrated plug-and-play design for easy upgrades and maintenance, with no visible external computer module cables, making the device aesthetically pleasing;
9) Supports gesture side menu for quick adjustment of brightness and volume, as well as signal source switching;
10) Direct-lit module backlight, mature, stable, and highly durable;
11) Supports both WiFi wireless connection and wired network connection;
12) System comes with built-in functions like screen casting, electronic whiteboard, and annotation;
13) Front expansion ports: 2 USB ports, 1 HDMI input, 1 TYPE-C, 1 TOUCH USB for convenient external device connection;
14) Supports multi-touch screen, and when paired with a PC motherboard for a dual-system all-in-one machine, the touch frame can seamlessly switch between Windows and Android systems;
15) Supports Android 11.0 system, allows multiple theme settings and switching at any time, with customizable startup logo;
16) Supports handwriting annotations on both Android and PC screens, real-scene annotations, and panoramic writing annotations, with gesture side navigation bar to quickly access frequently used shortcut keys;
17) Built-in standard 13-megapixel camera and 8-array microphone.
Specification | |||||
Display parameters | Screen size | 65″LED screen(16:9)：1428.5 x 803.5m 【HxV】 | |||
Screen brand | Brand new original ultra-clear LED screen | ||||
Resolution | 1920（H）×1080（V）/3840（H）×2160（V)optional | ||||
Viewing angle | 178 degree(H):178 degree(V) | ||||
Brightness | 350cd/m2 | ||||
Contrast | 5000：1 | ||||
Response Time | 8ms | ||||
Color gamut | 72% | ||||
Scan frequency | 4K-60HZ | ||||
Backlight | DLED | ||||
Display Output | HDMI | ||||
Color system | PAL、NTSC | ||||
Sound | 3D stereo sound effect, output power 2*10W | ||||
Screen Protector | Fully tempered glass (anti-glare optional) | ||||
Touch parameters | Touch Embedded Method | Built-in integrated, not external plug-in | |||
Touch Sensing Technology | Infrared Sensing Recognition Touch Technology (20 points) | ||||
Writing style | Fingers, stylus, or other objects with a diameter of no less than 2mm | ||||
Cursor speed | 120 points/s | ||||
Positioning accuracy | Over 90% of the touch area is within ±1mm | ||||
Communication Interface | Type B USB male | ||||
Touch resolution | 32767*32767 | ||||
Number of touches | Theoretically infinite | ||||
Computer response | System automatically detects; ≤15ms | ||||
Driver | Driver-free | ||||
Touch functionality | Supports 20-point touch operation on the computer, and supports image zooming, shrinking, and rotation. | ||||
Complete machine specifications | Image format | PAL/SECAM/NTSC（Option） | |||
Audio format | BG /DK /I/L | ||||
Decode | 3D digital comb filters, 3D image motion noise reduction, 3D motion-adaptive comb filters, etc. | ||||
Audio Characteristics | Balance, automatic volume control, surround sound, equalizer | ||||
Input port | One set of RF input, one set of AV input, one set of PC audio input, one set of VGA input, one set of HDMI input, one set of USB input | ||||
Output port | One set of headphone audio output, and one set of touch TOUCH output | ||||
Front port | USB1 (PC USB), USB2 (Full-channel shared USB), HDMI IN, TOUCH USB, TYPE-C | ||||
Storage environment | Storage temperature: -20°C to 60°C; Storage humidity: 10% RH to 90% RH | ||||
Work environment | Operating temperature: -10℃~55℃; Operating humidity: 10%RH~90%RH | ||||
Installation method | Rack (Standard) | ||||
Mounting hole spacing | 500×400MM | ||||
Power Type/Mode | Three-core power supply / Fixed | ||||
Power interface specifications | Three-seat formation | ||||
Power consumption | About 112 watts | ||||
Voltage Range | 190~260V/50~60Hz | ||||
Speaker | Front-mounted 2 x 8Ω 10W midrange speakers | ||||
Built-in wall installation dimensions | 1485.2*902.4*83.2 | ||||
Principles of Wall-Mounted Installation | Increase one side by 20mm | ||||
Standby Power Consumption | ≦0.5W | ||||
Theoretical service life | ≧50,000 hours | ||||
|
| ||||
|
| ||||
|
| ||||
|
| ||||
Computer Configuration (Optional) | i5 Configuration (Optional) | I7 Configuration (Optional) | |||
Intel chipset | |||||
Intel Core i5 | Intel Core i7 | ||||
8GB DDR3 RAM / 2.5-inch 256GB hard drive | 8GB DDR3 RAM / 2.5-inch 256GB hard drive | ||||
Intel Integrated Graphics Intel HD Graphics | Intel Integrated Graphics Intel HD Graphics | ||||
Input port | 1*LAN port, 3*USB 3.0 ports, 3*USB 2.0 ports, 1*MIC-IN port | ||||
Output port | 1*HDMI port, 1*VGA port, 1*LINE-OUT port | ||||
Operating System | Windows 7 Ultimate Edition operating system (Windows 10 operating system optional) | ||||
Random attachment | Standard Random Accessories: Stylus, warranty card, certificate of conformity, user manual, remote control, 1.5-meter power cable | ||||

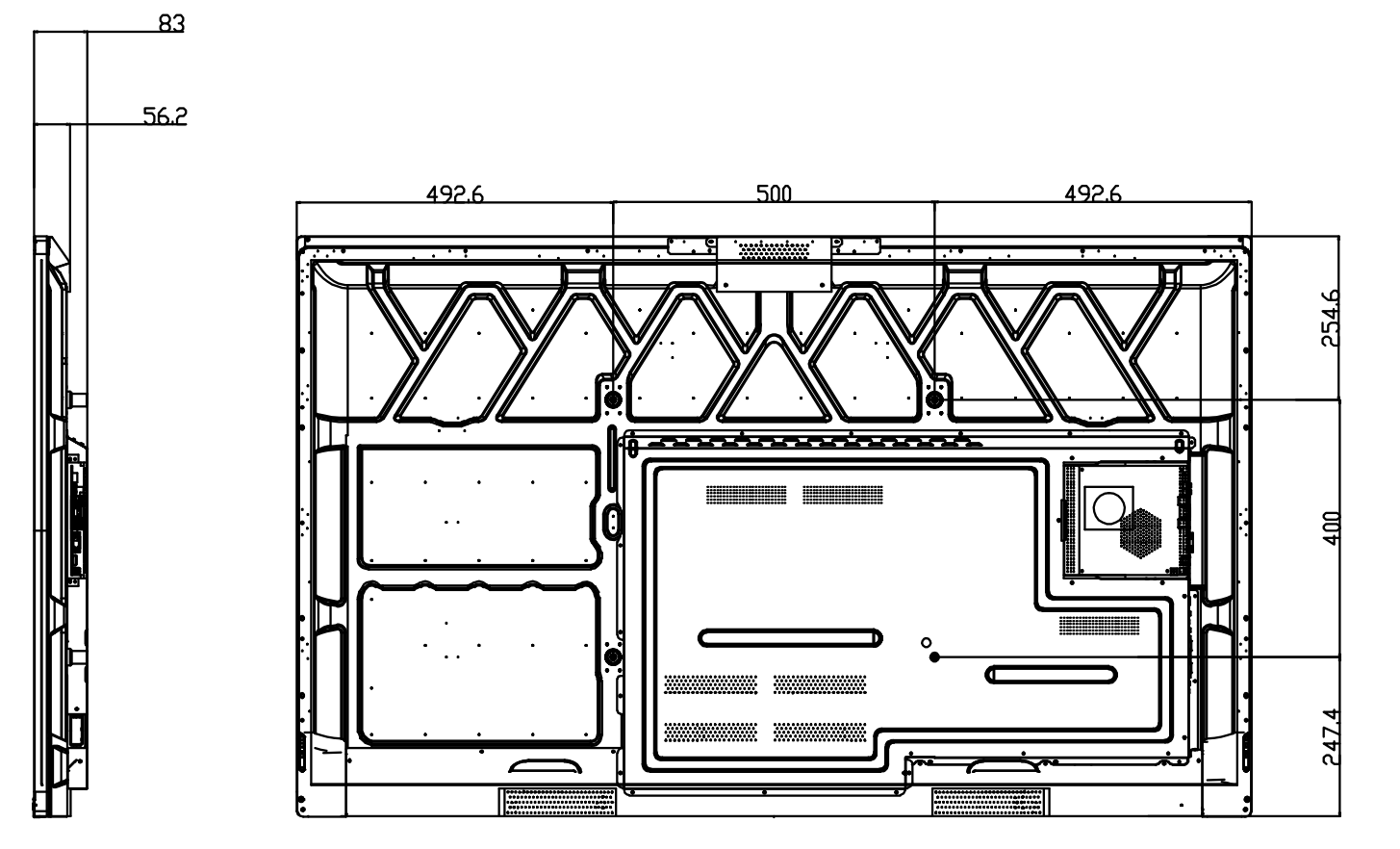

Overall Dimensions | |||||
| |||||
