Features |
1) Ultra-thin aluminum front frame with a fine sandblasted and anodized finish, zinc alloy electroplated corner brackets, metal back cover; the whole unit has a strong metallic texture and active heat dissipation.
2) Optional anti-glare tempered glass to protect the LCD screen and enhance visual effects, protect eyesight while improving the touch experience.
3) Standard high-precision infrared touch strip: 1- Touch accuracy <1mm; 2- Supports two 2mm pen tips writing simultaneously; 3- Supports five 3mm pen tips writing simultaneously.
4) Supports small handwriting up to 1cm in height for multiple users; 5- Two-color pen recognition accuracy 100% (requires Android whiteboard software support); 6- Lift height <1mm, foreign language writing without connected strokes (meets the standards of UNESCO supplier Promethean).
5) Structure is designed with low-touch zero-gap for an excellent touch writing experience.
6) Operating system: selectable between Android and Windows.
7) Front-facing speakers prevent sound quality degradation due to embedded placement.
8) Uses the internationally standard OPS slot with integrated plug-and-play design for easy upgrades and maintenance, no visible connecting cables for external computer modules, aesthetically pleasing chassis.
9) Supports gesture side menu for quick adjustment of brightness, volume, and signal source switching.
10) Direct-lit module backlight, mature, stable, and highly durable.
11) Supports WIFI wireless connection and wired Ethernet connection.
12) System comes preloaded with screen casting, electronic whiteboard, annotation, and other functions.
13) Front expansion ports: 2 USB ports, 1 HDMI input, 1 TYPE-C, 1 TOUCH USB for convenient external device use.
14) Supports multi-touch screen; when paired with a PC motherboard for dual-system all-in-one use, the touch frame can seamlessly switch between the dual systems (Windows/Android).
15) Supports Android 13.0 system, multiple theme settings can be switched anytime, custom boot logo settings, and other functions.
16) Supports freehand annotation on both Android and PC screens, supports live scene annotation and panoramic writing annotation; supports gesture side navigation bar to summon frequently used shortcut keys with one click.
Specification | |||||
Display parameters | Screen size | 86″LED screen(16:9)：1893.4 x 1064.9mm 【HxV】 | |||
Screen brand | Brand new original ultra-clear LED screen | ||||
Resolution | 3840（H）×2160（V) | ||||
Viewing angle | 178 degree(H):178 degree(V) | ||||
Brightness | 350cd/m2 | ||||
Contrast | 5000：1 | ||||
Response Time | 8ms | ||||
Color gamut | 72% | ||||
Scan frequency | 4K-60HZ | ||||
Backlight | DLED | ||||
Display Output | HDMI | ||||
Color system | PAL、NTSC | ||||
Sound | 3D stereo sound effect, output power 2*10W | ||||
Screen Protector | 4mm thick standard anti-glare tempered explosion-proof glass | ||||
Touch parameters | Touch Embedded Method | Built-in integrated, not external plug-in | |||
Touch Sensing Technology | Infrared Sensing Recognition Touch Technology (20 points) | ||||
Writing style | Fingers, stylus, or other objects with a diameter of no less than 2mm | ||||
Cursor speed | 120 points/s | ||||
Positioning accuracy | Over 90% of the touch area is within ±1mm | ||||
Communication Interface | Type B USB male | ||||
Touch resolution | 32767*32767 | ||||
Number of touches | Theoretically infinite | ||||
Computer response | System automatically detects; ≤15ms | ||||
Driver | Driver-free | ||||
Touch functionality | Supports 20-point touch operation on the computer, and supports image zooming, shrinking, and rotation. | ||||
Complete machine specifications | Motherboard system | Android 13.0 | |||
Motherboard processor | Amlogic T982 Processor Quad-Core Cortex-A55 | ||||
Motherboard storage space | 128G | ||||
Motherboard memory | 8G | ||||
Input port | RJ45 network cable port *1, AV input port *1, HDMI 2.1 port *1, USB 3.0 port *1, USB 2.0 port *1 | ||||
Output port | Coaxial output, headphone audio output, touch output interface, RS232 | ||||
Front port | USB*2，HDMI IN，TOUCH USB，TYPE-C | ||||
Storage environment | Storage temperature: -20°C to 60°C; Storage humidity: 10% RH to 90% RH | ||||
Work environment | Operating temperature: -10℃~55℃; Operating humidity: 10%RH~90%RH | ||||
Installation method | Rack (Standard) | ||||
Mounting hole spacing | 800×400MM | ||||
Power Type/Mode | Three-core power supply / Fixed | ||||
Power interface specifications | Three-seat formation | ||||
Power consumption | About 360 watts | ||||
Voltage Range | 110~240V/50~60Hz | ||||
Speaker | Front-mounted 2 x 8Ω 10W midrange speakers | ||||
Built-in wall installation dimensions | 1953.6*1152.7*93 | ||||
Principles of Wall-Mounted Installation | Increase one side by 20mm | ||||
Standby Power Consumption | ≦0.5W | ||||
Theoretical service life | ≧50,000 hours | ||||
|
| ||||
Computer Configuration (Optional) | i5 Configuration (Optional) | I7 Configuration (Optional) | |||
Intel chipset | |||||
Intel Core i5 | Intel Core i7 | ||||
8GB DDR3 RAM / 2.5-inch 256GB hard drive | 8GB DDR3 RAM / 2.5-inch 256GB hard drive | ||||
Intel Integrated Graphics Intel HD Graphics | Intel Integrated Graphics Intel HD Graphics | ||||
Input port | 1*LAN port, 3*USB 3.0 ports, 3*USB 2.0 ports, 1*MIC-IN port | ||||
Output port | 1*HDMI port, 1*VGA port, 1*LINE-OUT port | ||||
Operating System | Windows 7 Ultimate Edition operating system (Windows 10 operating system optional) | ||||
Random attachment | Standard Random Accessories: Stylus, warranty card, certificate of conformity, user manual, remote control, 1.5-meter power cable | ||||

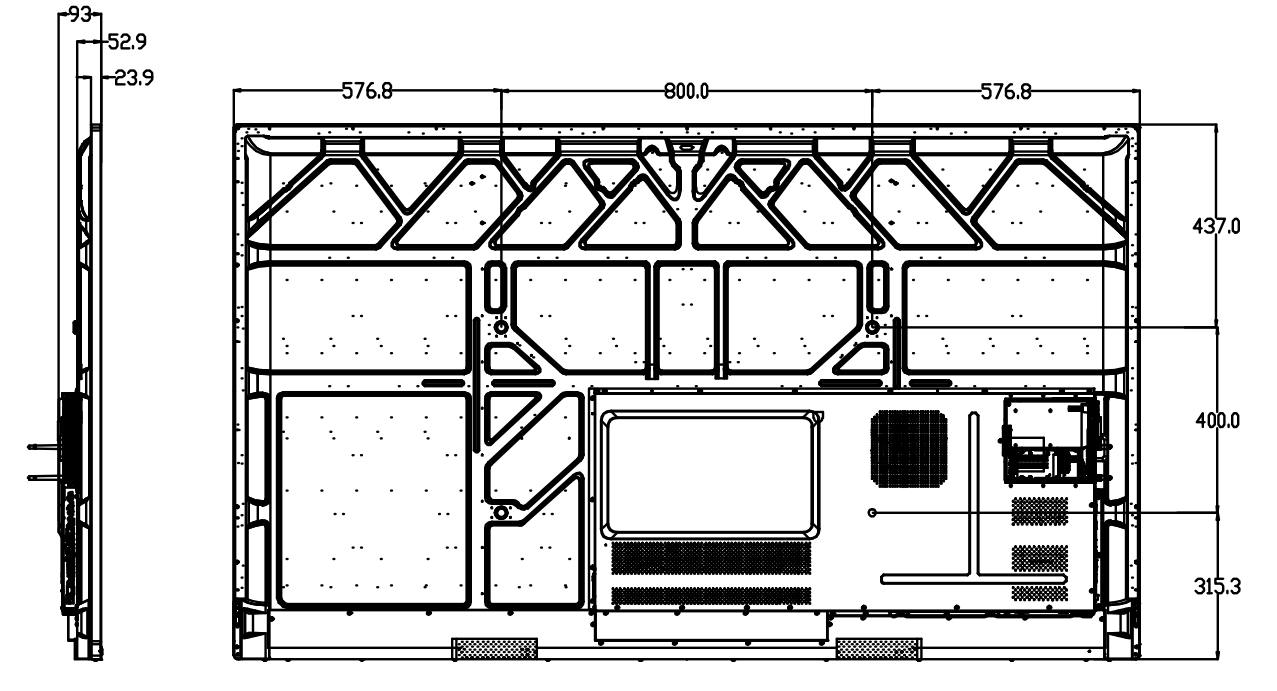

Overall Dimensions | |||||
| |||||
