Features |
1) Aluminum alloy outer frame, sandblasted and anodized surface, iron rear cover, giving a strong metallic feel and active heat dissipation;
2) Dual anti-glare tempered glass, protects the LCD glass and enhances visual quality, improving the touch experience;
3) Standard high-precision infrared touch bar: 1- touch accuracy <1mm; 2- supports 2 pens with 2mm tips writing simultaneously; 3- supports 5 pens with 3mm tips writing simultaneously;
4) Supports multiple users writing small text within 1cm height; 5- dual-color pen recognition accuracy is 100% (requires Android whiteboard software support); 6- lift-off height <1mm, foreign letters are written without connecting lines (meets the standards of Promethean, a UNESCO supplier);
5) Structural zero-gap low-touch technology provides an excellent touch writing experience;
6) Operating system: Android and Windows selectable;
7) Etched speaker sound holes and a metal mesh that integrates the touch pen holder, 0.4mm thickness with 0.6mm dense sound holes, effectively ensuring front speaker output, etched metal pen holder exposed, delicate appearance and easy pen placement;
8) Uses internationally standardized OPS slot, integrated plug-and-play design for easy upgrades and maintenance, no visible external computer module cables, aesthetically pleasing body;
9) Supports gesture side menu, allowing quick adjustment of brightness and volume, as well as signal source switching;
10) Direct backlight module, mature, stable, and highly durable;
11) Supports WIFI wireless connection and wired network connection;
12) Built-in system functions including screen casting, electronic whiteboard, and annotation;
13) Front expansion ports: 2 USB ports, 1 HDMI input, 1 Type-C, 1 Touch USB for convenient connection of external devices;
14) Supports multi-touch screen; when paired with a PC motherboard in a dual-system all-in-one machine, the touch frame can seamlessly switch between dual systems (Windows/Android);
15) Supports Android 13.0 system, multiple themes can be set and switched anytime, custom startup logo settings, etc.;
16) Supports handwritten annotation on both Android and computer screens, supports real scene annotation and panoramic writing annotation functions. Gesture side navigation bar allows one-click access to commonly used shortcut functions;
17) Built-in 48-megapixel camera and eight full-row microphones.
Specification | |||||
Display parameters | Screen size | 110″ LED screen (16:9): 2435.4 x 1369.5mm [HxV] | |||
Screen brand | Brand new original ultra-clear LED screen | ||||
Resolution | 3840（H）×2160（V) | ||||
Viewing angle | 178 degree(H):178 degree(V) | ||||
Brightness | 450cd/m2 | ||||
Contrast | 5000：1 | ||||
Response Time | 8ms | ||||
Color Depth | 16.7M | ||||
Scan frequency | 4K-60HZ | ||||
Backlight | DLED | ||||
Display Output | HDMI | ||||
Color system | PAL、NTSC | ||||
Sound | 3D stereo sound effect, output power 2*15W | ||||
Screen Protector | 4mm fully tempered explosion-proof glass | ||||
Touch parameters | Touch Embedded Method | Built-in integrated, not external plug-in | |||
Touch Sensing Technology | Infrared Sensing Recognition Touch Technology (20 points) | ||||
Writing style | Fingers, stylus, or other objects with a diameter of no less than 2mm | ||||
Cursor speed | 120 points/s | ||||
Positioning accuracy | Over 90% of the touch area is within ±1mm | ||||
Communication Interface | Type B USB male | ||||
Touch resolution | 32767*32767 | ||||
Number of touches | Theoretically infinite | ||||
Computer response | System automatically detects; ≤15ms | ||||
Driver | Driver-free | ||||
Touch functionality | Supports 20-point touch operation on the computer, and supports image zooming, shrinking, and rotation. | ||||
Complete machine specifications | Motherboard system | Android13.0 | |||
Motherboard processor | Amlogic T982 processor | ||||
Motherboard storage space | 128G | ||||
Motherboard memory | 8GB (High-Speed DDR4) | ||||
Input port | RJ45: 1 port, HDMI: 1 port, USB 3.0: 1 port, USB 2.0: 1 port, RS232 serial port: 1 port, AV: 1 port | ||||
Output port | Headphones: one set, Touch: one set, AV: one set, Coaxial: one set | ||||
Front port | USB1 (PC USB), USB2 (Full-channel shared USB), HDMI IN, TOUCH USB, TYPE-C | ||||
Storage environment | Storage temperature: -20°C to 60°C; Storage humidity: 10% RH to 90% RH | ||||
Work environment | Operating temperature: -10℃~55℃; Operating humidity: 10%RH~90%RH | ||||
Installation method | Rack (Standard) | ||||
Mounting hole spacing | 1000×800MM | ||||
Power Type/Mode | Three-core power supply / Fixed | ||||
Power interface specifications | Three-seat formation | ||||
Power consumption | About 784 watts | ||||
Voltage Range | 110~240V/50~60Hz | ||||
Speaker | Front-mounted 2 x 8Ω 15W midrange speakers | ||||
Built-in wall installation dimensions | 2500.8*1479.7*105.3 | ||||
Principles of Wall-Mounted Installation | Increase one side by 20mm | ||||
Standby Power Consumption | ≦0.5W | ||||
Theoretical service life | ≧50,000 hours | ||||
|
| ||||
|
| ||||
|
| ||||
|
| ||||
Computer Configuration (Optional) | i5 Configuration (Optional) | I7 Configuration (Optional) | |||
Intel chipset | |||||
Intel Core i5 | Intel Core i7 | ||||
8GB DDR3 RAM / 2.5-inch 256GB hard drive | 8GB DDR3 RAM / 2.5-inch 256GB hard drive | ||||
Intel Integrated Graphics Intel HD Graphics | Intel Integrated Graphics Intel HD Graphics | ||||
Input port | 1*LAN port, 3*USB 3.0 ports, 3*USB 2.0 ports, 1*MIC-IN port | ||||
Output port | 1*HDMI port, 1*VGA port, 1*LINE-OUT port | ||||
Operating System | Windows 7 Ultimate Edition operating system (Windows 10 operating system optional) | ||||
Random attachment | Standard Random Accessories: Stylus, warranty card, certificate of conformity, user manual, remote control, 1.5-meter power cable | ||||

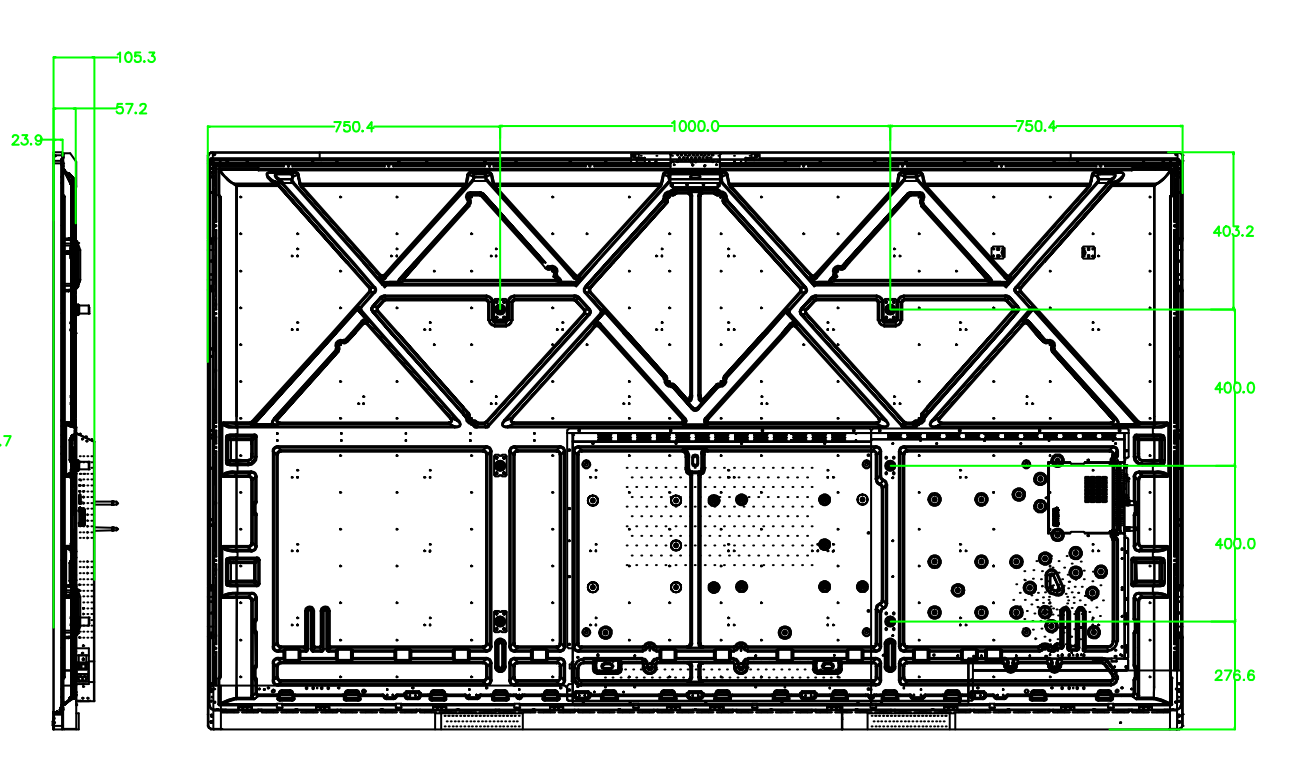

Overall Dimensions | |||||
| |||||
